EC-200-PP Side-Stream Particle Precipitator

The smallest of the ElectroCell product line, the EC-200-PP is designed for HVAC open loops less than 500 tons and closed loops under 4,000 tons. The EC-200-PP can also be utilized on hot water closed loops.

ElectroCell’s patented technology incorporates three stages in the process of removing solids. The EC-200-PP is not a mechanical separator or media filter with backwash cycles; it is a particle precipitator that will typically remove 98-99% of all suspended solids down to 1 micron.

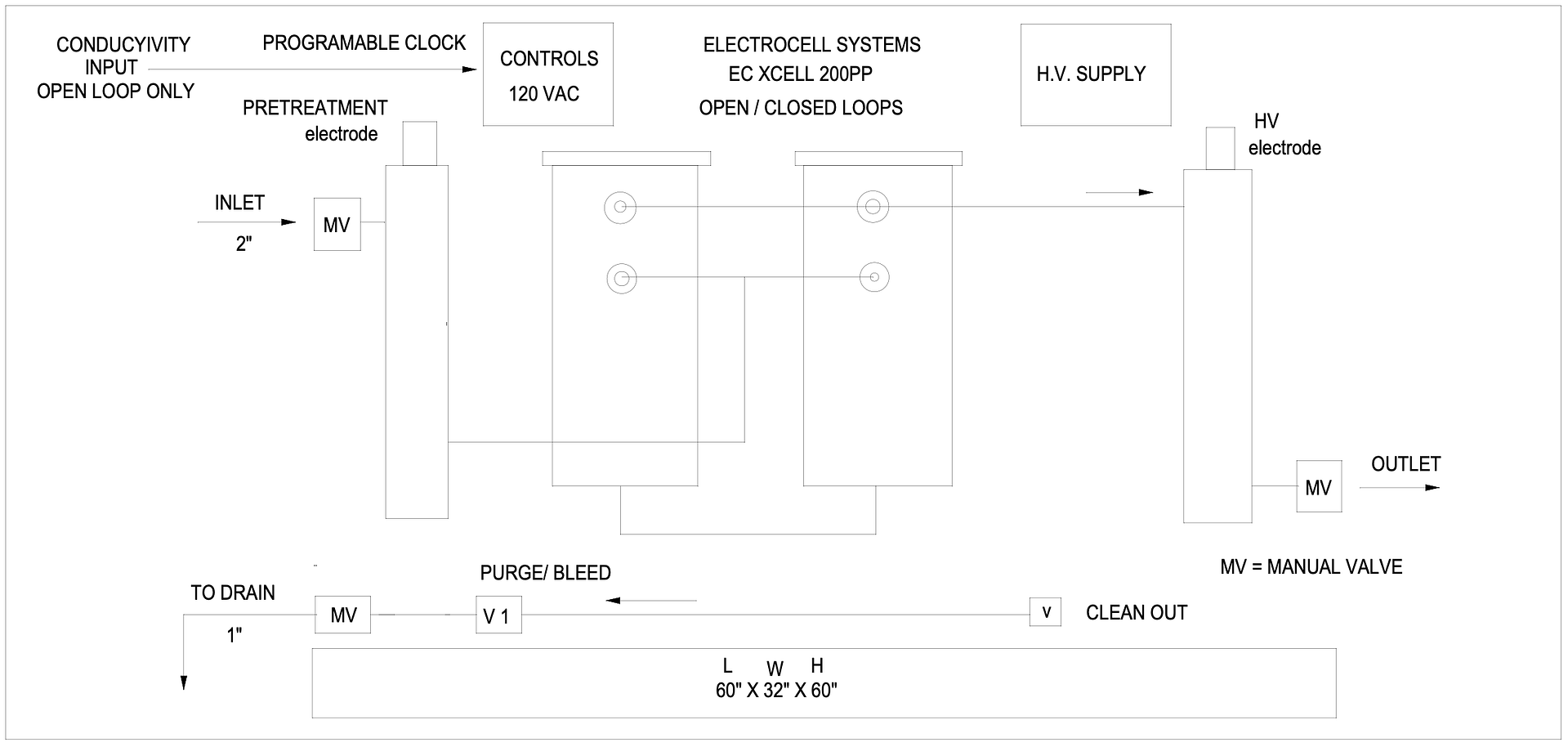

When used on an open loop (<500 tons) this system employs a conductivity meter interface to the chemical company’s meter and uses bleed cycles to purge solids that have been collected through the day (bleed to drain). When used on a closed loop this system’s electronic programmable clock can periodically purge the system of collected solids to a floor drain.

The EC-200-PP is designed to perform for 15 years and is easy to maintain, requiring approximately 20 minutes every 90 days to rinse the static mixers in a utility sink and wipe the electrodes clean. There are no parts to replace. This unit plugs into a 120V receptacle and uses less than 1 amp.

Note: EC-200-PP units installed on Chilled Water Systems must be insulated
